75 mm Diameter Capacity<br/>
		Wood Chipper sold in Southern Africa<br/>

		180 mm Diameter Capacity<br/>
		 <br/>

		180 mm Diameter Capacity<br/>
		 <br/>

		180 mm Diameter Capacity<br/>
		 <br/>

		254 mm Diameter Capacity<br/>
		 <br/>
		PTO Driven chippper<br/>

		254 mm Diameter Capacity<br/>

		The powerful CR254RI Brush Chipper is the reliable, efficient and easy-to-use choice for tree service contractors and municipalities.

		 <br/>
		Screw Wood Chipper sold in Southern Africa<br/>

Grizzly Chipper BXR254


Optimal for professional forestry
254 mm Diameter Capacity

PTO Driven chippper

Optimal for professional forestry, orchards of all kinds

254 mm Diameter Capacity branches and logs can be chipped

Wooden blocks of 250mm x 432mm can also be chipped.

Hydraulically fed hopper with Intelligent Electronic Feeding Device (IEFD)

PTO Driven chippper

Grizzly 254 Wood Chippers have a PTO powered rotor and hydraulic feed hopper, meaning branches, limbs and brush are control fed for continuous chipping at maximum capacity.

Drive System: Direct Drive, PTO with Shearbolt
kW (HP) Requirements for Maximum Capacity: 68 – 90kW (90 – 120HP)
kW (HP) Range: 40 – 112kW (65 – 150HP)
Recomended Hydraulic Flow: 15 – 35 LPM (4 - 8 GPM)
Chipper Capacity: 254 mm
Chipper Housing Opening: 254 x 432 mm
Rotor Size: 91,4 cm
Number of Rotor Knives: 4 Segmented
Knife Type: Hardened Tool Steel
Rotor Weight: 192,8 kg
Dimensions LxWxH (Hopper Folded): 2160 x 1850 x 2540 (mm)
Hopper Opening: 76,2 x 106,7 cm
Discharge Hood Rotation: 285 degrees
Rated RPM: 540 - 1000
Discharge Hood Height: 2530 mm
Weight: 885 kg

The Grizzly BXR254 from Scanwood Solutions comes standard with a three point hitch, hydraulic operated feed rollers and is ideal for tractors with a kw rating of between 50 – 75 kw. The slab style opening of the Grizzly 254 leads to an impressive chipping capacity. While it is a 254mm chipper, the 432mm horizontal opening lets you feed the chipper with a lot more than you would expect. The chipping capacity is also due to the 920mm steel rotor, weighing a massive 193kg, and comes standard with 4 hardened, reversible, tool grade steel knives. Behind each knife is the twig breaker system which virtually eliminates clogging. The Scanwood Grizzly BXR254 Wood Chipper also comes standard with two hydraulically operated feed rollers which grab hold of branches and aggressively pulls them into the wood chipper. The Grizzly BXR254 Control bar meets the most recent and stringent safety global standards. It features two stop positions as well as forward and reverse functionality. The Grizzly BXRI 254 features the unique IEFD (Intelligent Electronic Feeding Device) system which continually match feed and rotor speed for ultimate performance. The Grizzly BXR254 wood Chipper is manufactured in Canada, comes standard with a standard 3 year warranty fabrication failure.

Photo of wood chipper blades
Woodchipper blades
Closeup photo of a chipper rotor
Chipper Rotor

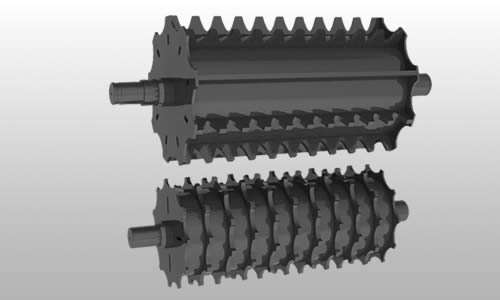

3D rendering of the chipper roller
Dual active rollers
Figure showing the mechanism of the gripping tension in the woodchipper
Gripping tension
Photo of a Grizzly chipper feed hopper hydraulically feed.
Hydraulic feeding hopper

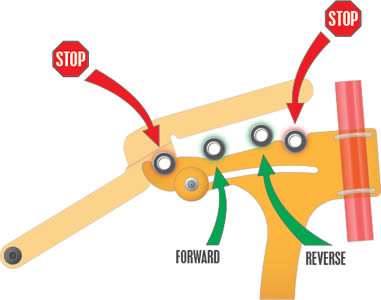

Figure showing the safety mechanism in a wood chipper
Safety control bar

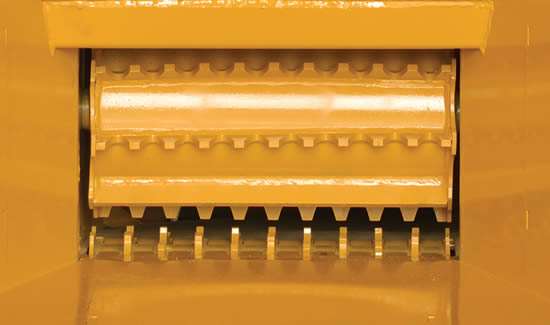

Opening of a chipper where the wood is feed into.
Slab style opening
Photo of the hitch on the chipper. Easily conects to any tractor
Hitch of the chipper
Photo of a man adjusting the angle of the chute on a grizzly woodchipper
Adjustable chute of the woodchipper

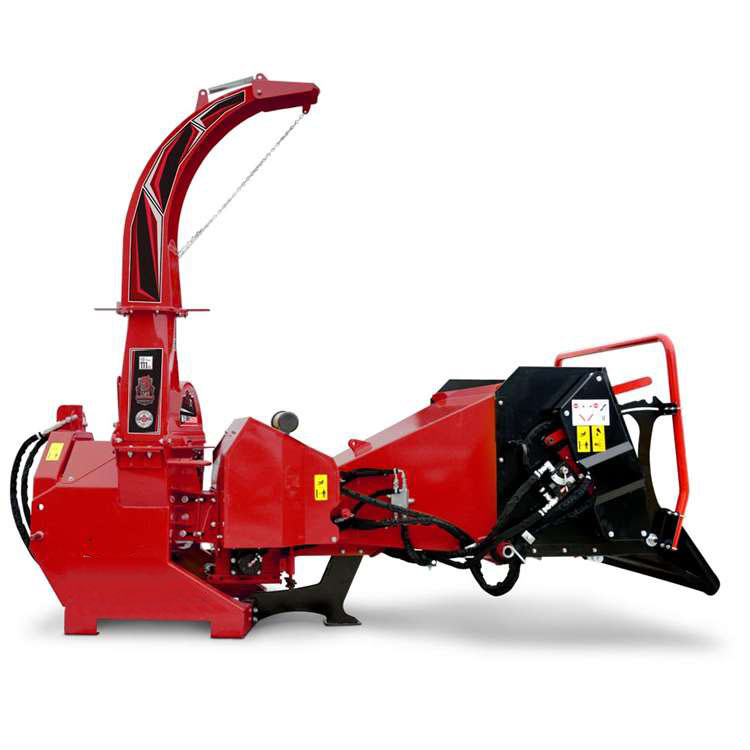

Wood chipper on a white background
Grizzly Chipper BXR254

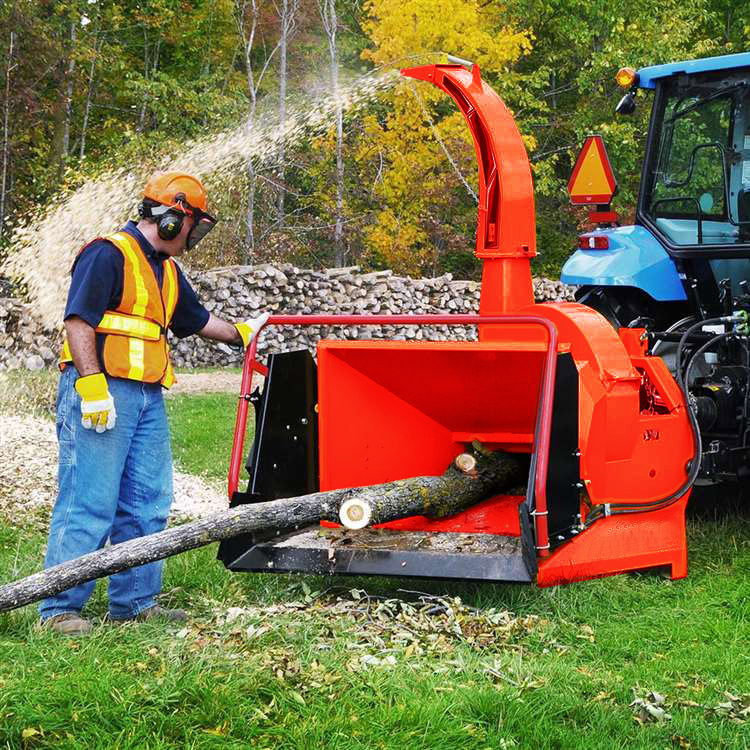

Photo of a man feeding a tree into a Grizzly woodchipper
Demo of the Grizzly Chipper BXR254

The Grizzly 254 from Scanwood Solutions comes standard with a three point hitch, hydraulic operated feed rollers and is ideal for tractors with a kw rating of between 50 – 75 kw.

The slab style opening of the Grizzly 254 leads to an impressive chipping capacity. While it is a 254mm chipper, the 400mm horizontal opening lets you feed the chipper with a lot more than you would expect. The chipping capacity is also due to the 92cm steel rotor, weighing 193kg, and comes standard with 4 hardened, reversible, tool grade steel knives.

Behind each knife is the manufacturer’s, equipment, twig breaker system which virtually eliminates clogging.

The Scanwood Grizzly 254 Wood Chipper also comes standard with two hydraulically operated feed rollers which grab hold of branches and aggressively pulls them into the wood chipper.

The Grizzly 254 Control bar meets the most recent and stringent safety global standards. It features two stop positions as well as forward and reverse functionality.

The Grizzly 254 features Intelligent Electronic Feeding Device (IEFD) system which continually match feed and rotor speed for fewer stops.

The Grizzly 254 Wood Chipper, proudly manufactured in Canada, comes standard with a 5 year warranty on build quality

The angled cutting edge on the wood chippers in the Forest series result in larger chips. The knives can be adjusted for different chip sizes and sliver breakers ensure an extremely uniform chip quality. The chips are used for combustion in large and medium sized heating systems, as layering on beds as well as on paths and walking areas.

Grizzly BXR254 WOOD CHIPPER

This wood chipper is a strong and compact wood chipper that is optimal for professional forestry. The wood chipper is mounted on the tractors 3-point suspension and a dumper can be mounted at the front of the tractor. The long ejector spout blows the chips over the tractor and directly into the dumper. Required power from 40 – 112 kW. To get the full benefit from the Grizzly BXR254 wood chipper , it is necessary to have a tractor where the seat can be turned 180°. With the chipper parallel to the direction of traffic, the Grizzly BXR254 wood chipper is the perfect solution for row felling or for clear-cutting with a high capacity of 50m3 p/hour. The Grizzly BXR254 wood chipper can be operated with a crane.

Enquire about this product

To contact us about the Grizzly Chipper BXR254 Click here
