TMC Mulchers

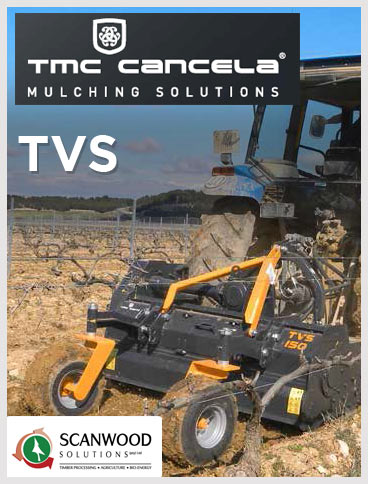

TVS Mulchers

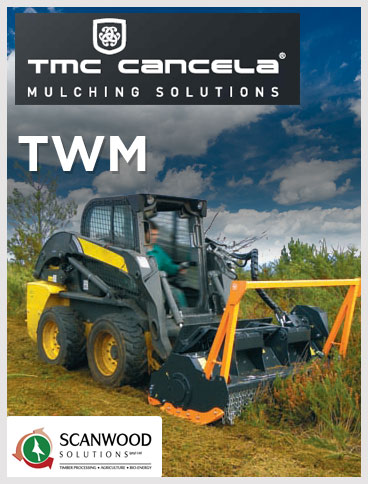

TWM Mulchers

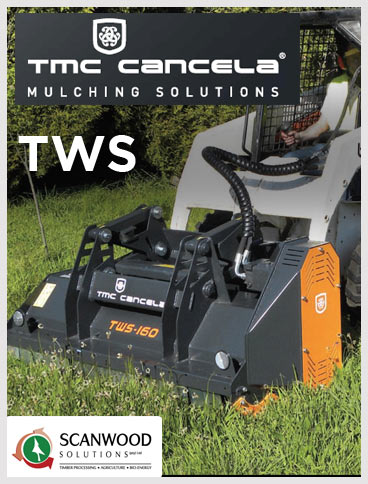

TWS Mulchers

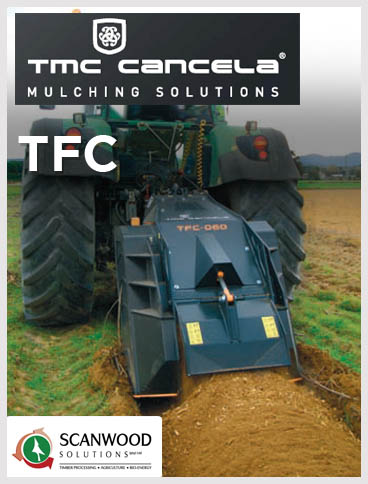

TFC Mulchers

TVS Mulcher

TVS-110 TVS-130 TVS-150 TVS-180 TVS-200
WEIGHT 770 kg 850 kg 900 kg 1.040 kg 1.120 kg
No. OF HAMMERS 14+14 16+16 20+20 22+22 26+26
POWER (hp) 60-100 70-100 80-100 90-100 100-110
WORKING WIDTH 1,10 m 1,30 m 1,50 m 1,80 m 2,00 m

TWS-160 TWS-180 TWS-200
WEIGHT 615 kg 694 kg 792 kg
NR. HAMMERS 26 28 32
REQUIRED PRESSURE 180 - 250 bar / 2.610 - 3.625 psi
MIN. FLOW 70 - 165* l/min
WORKING WIDTH 1,60 m 1,80 m 2,00 m

TWM-160 TWM-180 TWM-200
WEIGHT 725 kg 810 kg 895 kg
NR. HAMMERS 16 18 20
REQUIRED PRESSURE 180-250 bar 180-250 bar 180-250 bar
MIN. FLOW 80 l/min 80 l/min 80 l/min
WORKING WIDTH 1,60 m 1,80 m 2,00 m

TECHNICAL FEATURES


· Welded mainframe with double layer of high strength cold forming steel.
· Special design in the front for facilitating the input of the material.
· Front quadruple chains curtain + 1 extra curtain.
· Coupling to tractor Cat. II with incorporated quick hitch linkage balls.
· Hydraulic rear hood made of high strength steel (for facilitating the material entrance and obtaining the best finish in mulching).
· Sidestep system in frame sides for overcoming obstacles.
· Adjustable in height rounded side skids (2 positions).
· Rotor assembled with fixed hammers.
· Hammers assembled to the holders with two bolts.
· 10 XPB drive belts with ESB system.
· Gearbox with built-in freewheel and input to 1000 rpm (1”3/4 Z6).
· Rotor assembled with self-aligning spherical roller bearings.
· Reinforced PTO shaft.
· Hammers with 2 carbide tips (widias) F03 and F04 models.
· Hammer holders S08 type welded to the rotor with double helicoidal arrangement.

OPTIONS


· Mechanical rear frame.
· Hydraulic rear frame with raker teeth.

Enquire about this products

To contact us about the TMC Mulchers Click here
