Grizzly Chipper BXRI 180

Training on Scanwood Grizzly Wood Chippers

Optimal for professional forestry
180 mm Diameter Capacity


Optimal for professional forestry, orchards of all kinds

180 mm Diameter Capacity branches and logs can be chipped

Wooden blocks of 180mm x 300mm can also be chipped.

Hydraulically fed hopper with Intelligent Electronic Feeding Device

Drive System: Direct Drive, PTO with Shearbolt
KW (HP) Range: 30- 75 Kw (40 – 100 HP)
Chipper Capacity: 180 mm
Rotor Size: 71,1 cm
Knife Type: Hardened Tool Steel
Dimensions LxWxH (Hopper Folded): 211 x 142 x 229 (cm)
Discharge Hood Rotation: 285 degrees
Discharge Hood Height: 2286 mm
KW Requirements for Maximum Capacity: 55-65kW (60 – 70 HP)
Recommended Hydraulic Flow: 3 - 6 GPM (11 – 25 LPM)
Chipper Housing Opening: 180 x 280 mm
Number of Rotor Knives: 4 Segmented
Rotor Weight: 83,9 kg
Hopper Opening: 66,0 x 88,9 cm
Rated RPM: 540 - 1000
Weight: 590 kg

Grizzly BXR Wood Chippers have a PTO powered rotor and hydraulic feed hopper, meaning branches, limbs and brush are control fed for continuous chipping at maximum capacity.

The Grizzly 180 Wood Chipper from Scanwood Solutions comes standard with a three point hitch, hydraulic operated feed rollers and is ideal for tractors with a kw rating of between 45 – 55 kw. The slab style opening of the Grizzly 180 leads to an impressive chipping capacity. While it is a 180mm chipper, the 300mm horizontal opening lets you feed the chipper with a lot more than you would expect. The chipping capacity is also due to the 72cm steel rotor weighing 85kg and comes standard with 4 hardened tool grade steel knives. Behind each knife is the manufacturer’s, Wallenstein equipment, twig breaker system which virtually eliminates clogging. The Scanwood Grizzly 180 Wood Chipper also comes standard with two hydraulically operated feed rollers which grab hold of branches and aggressively pulls them into the wood chipper. The Grizzly 180 Control bar meets the most recent and stringent safety global standards. It features two stop positions as well as forward and reverse functionality. The Grizzly 180 features Intelligent Electronic Feeding Device (IEFD) which continually match feed and rotor speed for fewer stops. The Grizzly 180 Wood Chipper, proudly manufactured in Canada, comes standard with a 5 year warranty on build quality.

Photo of wood chipper blades
Woodchipper blades
Closeup photo of a chipper rotor
Chipper Rotor
3D rendering of the chipper roller
Dual active rollers
Figure showing the mechanism of the gripping tension in the woodchipper
Gripping tension
Photo of a Grizzly chipper feed hopper hydraulically feed.
Hydraulic feeding hopper
Figure showing the safety mechanism in a wood chipper
Safety control bar
Opening of a chipper where the wood is feed into.
Slab style opening
Photo of the hitch on the chipper. Easily conects to any tractor
Hitch of the chipper
Photo of a man adjusting the angle of the chute on a grizzly woodchipper
Adjustable chute of the woodchipper
Wood chipper on a white background
Grizzly Chipper BXR180

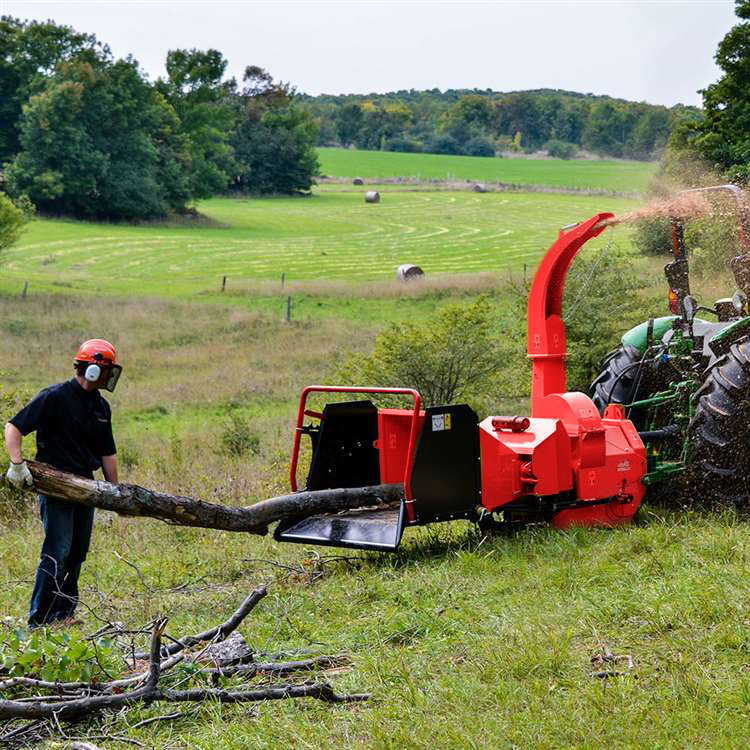

Photo of a man feeding a tree into a Grizzly woodchipper
Demo of the Grizzly Chipper BXR180

In terms of safety the machine complies with current regulations in the EU. The wood chipper is equipped with an operation bar for controlling the feed roller. With the operation bar it is possible for the operator to start and stop as well as reverse of the feed roller.

Enquire about this product

To contact us about the Grizzly Chipper BXRI 180 Click here
